Quick splasher

Reducing the chance of Arson Attacks

Utilizing our accumulated technological capabilities, if gasoline leaks out, the evaporation of gasoline can be suppressed by instantly discharging a fire suppression over a wide area before ignition.
We have developed a new concept fire suppression "Quick splasher".

Features

  • 2.5L agent discharge in 1.8 seconds.
  • Maximum protected area is 10 m². Prevent evaporation of gasoline.
  • Pull the locking pin and squeeze the lever.
  • Evacuate easily. Avoid being caught in fire.
  • Easy to carry. One Quick splasher weighs about 5Kgs.

■ Video

The way to use Quick splasher

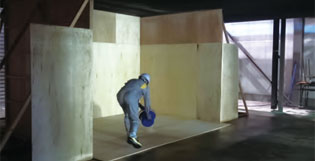

1. Oil leakage

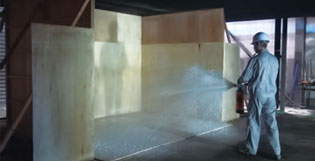

2. Discharge Quick splasher

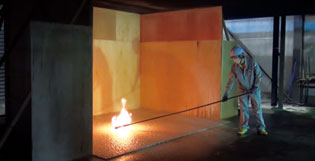

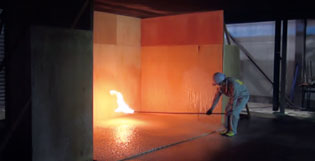

3. It will not ignite even if there is a fire.

4. Has good suppression effect.

Measures against gasoline leak

■ Gas station

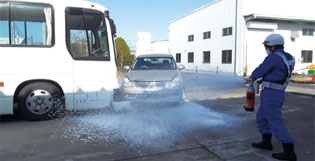

■ Traffic accident

Oil recovery example


Oil leakage

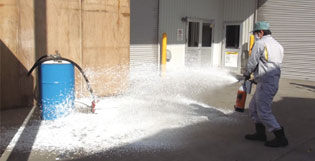

Discharge Quick splasher

Spraying oil gelling agent

Mix and adsorb oil

Collect agents into the can

scene

Demonstrate a fire suppress function against accidental or unexpected oil leakage in various cases.

Comparison table of Quick splasher and fire extinguisher

ABC powder extinguisher Mechanical foam fire extinguisher Quick splasher
Weight of extinguishing agent 3kg 3L 2.5L
Purpose 《To extinguish a fire》
To make a fire stop burning		 《To extinguish a fire》
To make a fire stop burning.		 《Suppress fire against arson and oil spill.》
Prevent ignition and combustion expansion from unintentional explosions.
Discharge time 15～25 seconds 30～50 seconds about1.8 seconds
Discharge characteristics Aim at the base of the fire. Aim at the base of the fire. Instantly discharge over a wide area.
Effective range〔ex〕 Class B Fires:
Effective range: 1.4㎡		 Class B Fires:
Effective range: 1.2㎡		 Ignition suppression and combustion suppression in the range of about10㎡.
The sustainable suppression effects No sustainable suppression effect. Few sustainable suppression effect. Suppression effect lasts for 15 minutes or more.

Quick splasher
